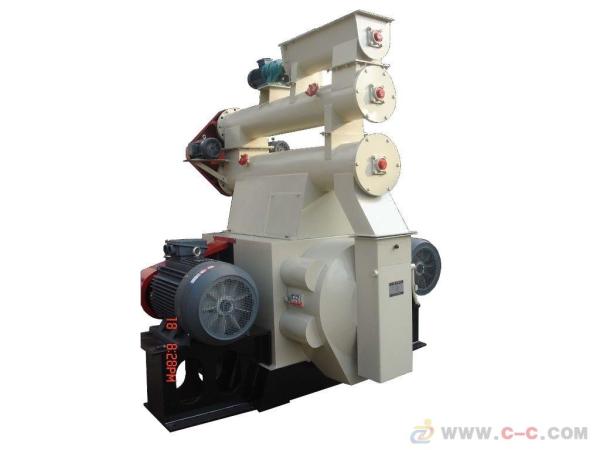

SZLH350 Animal Feed Pellet Making Machine 10mm Poultry Meal Ring Die

Ask Lasest Price
Brand Name :	Shenghong
Model Number :	SZLH250
Certification :	BV, SGS, ISO9001, CE
Price :	USD 5999-29999
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	20 sets per month
Delivery Time :	within 15 days

Add to Cart

Product Details
Company Profile

SZLH350 Animal Feed Pellet Making Machine 10mm Poultry Meal Ring Die

Animal Feed Making Machine SZLH350 Ring Die Animal Feed Pellet Machine

Product description

As the increasing price of conventional fish feed, modern aquatic feed pellets made by pellet mill are becoming more and more popular in aquaculture. This kind of aquatic feed pellet millis widely adopted by farmers who feed large quantity of aquatic animals. With advanced pelletizing technology and compact design, this feed pellet mill can ensure efficient pellets production with super quality. Pellets diameter can be from 2mm to 10mm to meet different aquatic species’ demand. Want to greatly save time and cost of aquatic farming? Try this specially designed aquatic feed pellet mill! While with this aquatic feed pelletizer, you should make sure that this pellet mill can only make sinking feed pellets, if you want to make floating fish feed pellets, you should choose puffing fish feed extruders(poultry feed making machine).

Parameter

Raw materials	corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc.
Diameter of feed pellet	2/2.5/3/3.5/4/6/8/10mm
Application	feed pellet machine/plant widely be used for home,poultry and livestock farm.
Capacity	1-3T/H,also can customized according to your demand
Process Step	crushing-mixing-pelletizing--cooler&screener--packing
Warranty	1Year(except spare parts)
Certication	CE
Motor	Siemens Brand Motor
Bearing	Brand
Service after sales	Engineer can provide technical support

Model	Main power(kw)	Out-put(t/h)	Power of Conditioner(kw)	Power of screw feeder(kw)	In-side of rind die(mm)
SZLH250	22	0.5-1.5	2.2	0.55	250
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Feature:

1. Driven by gear, so that the output is improved by about 20% when compared with that of belt drive.
2. Advanced bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation.
3. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles.
4. High-quality craft ring dies are adopted, so that the service life is long; the discharged pellets are smooth and the quality is high.
5. Snakelike spring coupling has the properties of novel and compact structure, low noise and low fault rate.

Application:

1. High quality finished pellets: The feed pelletizer adopts two or three layers jacketed conditioner, so the material can be fully cooked, meeting special needs and ensure high quality of final aquatic feed pellets.
2. High efficiency: Main driving adopts high precision gear transmission, the capacity can be improved about 20% compared to the belt transmission, and with low energy-consumption.
3. High pellets shaping rate: The international advanced spring coupling device is of novel and compact structure, ensures pellets shaping rate higher than 95%.
4. Safe and easy operation: Overload protection and electrical control system make the operation safe and easy.
5. Long service life: Multiple aperture ring die for choice, excellent craft of ring die ensure long service life of the key parts.
It can not only produce various kinds of high quality feed pellets for fish, eel, shrimp, crab, loach, bullfrog, etc, and can produce many kinds of pet feeds for cat, dog, rabbit and etc.

SZLH350 Animal Feed Pellet Making Machine 10mm Poultry Meal Ring Die
