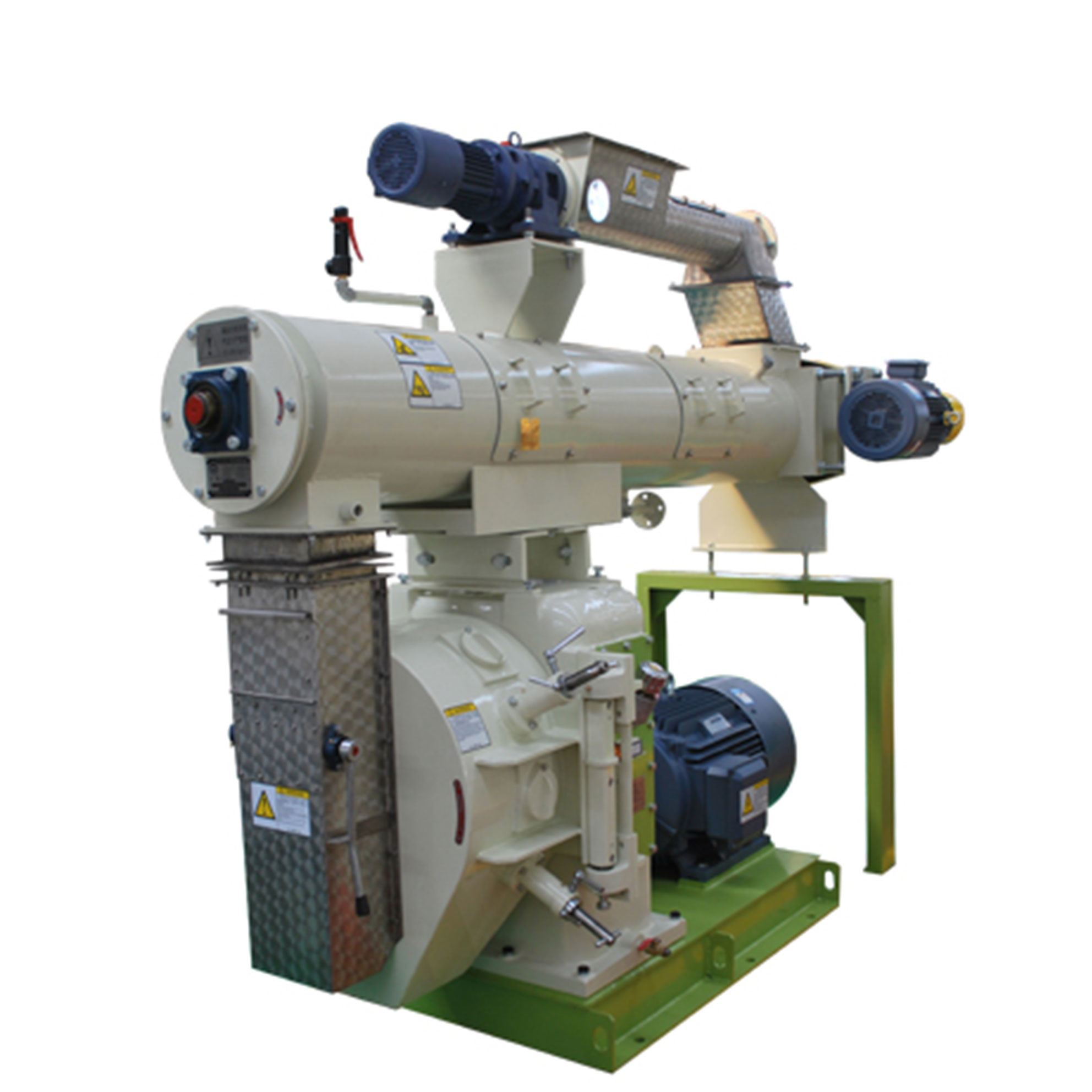

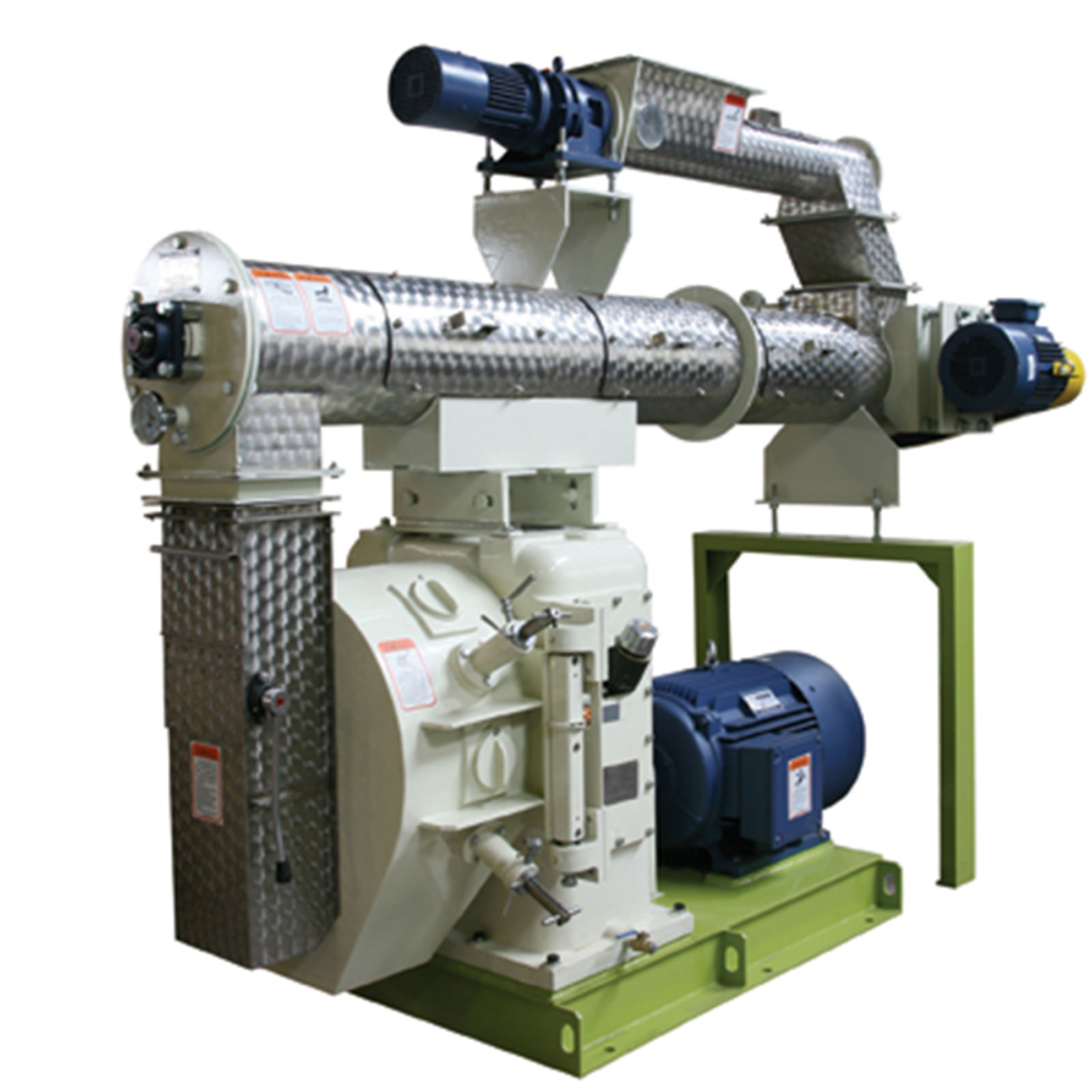

Automatic CE Certified Livestock Feed Equipment Animal Feed Pellet Machine

Introduction:

Comprehensive upgrade on the original technology, improve the efficiency of pelletizer, enhance stability, safety.

1, high precision gear drive, its output is 15-20% higher than belt drive type.

2, big gear and gear shaft adopt hard tooth surface and grinding technology, high precision, life up to 15 years.

3, the feeder adopts "O-type" cylinder, which not only improves the feeding uniformity, but also effectively prevents the steam channelling.

4. The quencher is increased by 15% on the basis of CPM model to improve the material curing degree.

5, quenching and tempering blade head welding throwing scraper, accelerate the material and steam fusion, improve the degree of curing.

6, high precision gear direct transmission, strong overload resistance, general blocking machine can be restored without stopping.

7, the rear end of the spindle is improved to bearing support, to ensure that the empty shaft, the spindle axis parallel, the spindle does not shake, improve productivity.

8, pelleter box material is made of high wear resistance internal combustion engine cylinder liner material, long use can still maintain good accuracy. Service life up to 20 years;

9, above 558 granulator equipped with thin oil lubrication device outside the machine (with cooling, filtering and oil alarm function), forced lubrication spindle, tooth shaft and empty shaft bearing, reduce the temperature of the whole box, improve the service life of oil seal, Oring.

10. The improvement of the overall technology makes the daily maintenance cost of Shenghong pelletizer much lower than the belt type.

11. Simple, one granulator can realize the simultaneous operation of multiple granulators. It is easier to implement automatic control.

Parameter of feed pellet machine

Introduction:

This 1ton per hour animal feed pellet production line is used to press raw materials into pellets.The raw mateirals can be corn,wheat,grain,wheat,etc.The processing is included crusher-mixer-conveyor-pellet machine-cooler.This small animal feed pellet production line is widely used in large,medium and small scale aquaculture,livestock farms and grain feed processing plants.The small simple animal feed pellet production line has a simple and light structure, and the production capacity is 500-2000kg, which is convenient for assemble and maintenance and very practical for small feed factory, farm and home use.

Zhengzhou shenghong heavy industry technology co.,ltd. (short for “Shenghong Technology”)

is recognized globally as an expert in process design and equipment manufacturer on feed industry, including feed pellet production line with 5000 to 100000 tons per year and powder feed production line with 5000 to 200000 tons per year.

Our company has professional and technical personnel and production management elites in many industries, and has rich on-site operation experience. Our company is mainly engaged in the construction and transformation of various scales of livestock and poultry feed, aquatic products and special aquatic feed, premixed feed, additives, fermented feed, pasture feed and other projects. We can also provide customers with various types of single-machine equipment and accessories for high-quality feed production lines such as crushing, mixing, granulating, cooling, crushing, grading, and quantitative packaging.

Since its establishment, the company has continuously introduced new products on the basis of digesting and absorbing the advanced achievements of domestic and foreign products, which are widely sold in dozens of countries at home and abroad, and have won unanimous recognition from customers.

After several years of intensive cultivation in the feed industry, the company now has a number of domestic and international certificates, including CE certificate, ISO9001 certification, and we also have our own patent certificate, BV certificate and so on.
