16t/H Poultry Livestock Feed Equipment Feed Pellet Mill With
Automatic System
Advantages of livestock feed equipment:
1. Low power consumption of 8-16 tons per hour;
2. imported high-quality bearings, bearing configuration
optimization, stable operation of equipment;
3, optimize the parameters of pelleting and conditioning effect, so
that the output of pelleting machine increased 20% again;
4, new double head screw die roller gap adjustment structure, easy
to operate, fast;
5, the improved feeding scraper makes the material can be evenly
distributed to the two pressing areas, the material is more
uniform, the equipment runs more smoothly.
Parameter of livestock feed euipment:
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
| Power(KW) | 22 | 37 | 55 | 110 | 160 |
| Capacity(T/H) | 1 | 2-4 | 5-7 | 8-10 | 15-20 |
| Inner dia(mm) | 250 | 320 | 350 | 420 | 508 |
| Pellet size(mm) | 2-8 | 2-8 | 2-18 | 2-18 | 2-18 |
Open door construction:
Equipped with self-lubricating grease system, it can automatically
add grease to roller bearings at regular time and quantitatively,
which is more convenient to use and has better lubrication effect.
The application of thin oil cooling and lubrication system outside
the machine improves the lubrication and cooling effect of bearings
in the transmission system, so that the equipment can run
continuously for a long time;
Gear and gear shaft adopts high-quality steel, optimized
transmission gear design and advanced processing and heat treatment
technology, so that the gear life is longer, transmission effect is
higher;

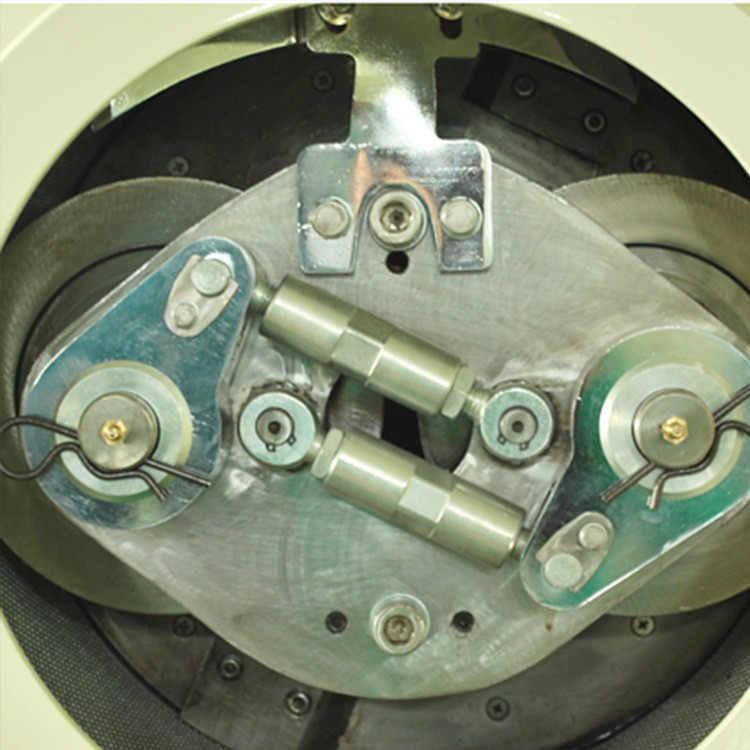

Improved gap adjustment structure
The ring die adopts high quality alloy steel forging billet,
imported gun drill and multi-station group to make the die hole
forming once, high smoothness; Imported vacuum furnace and
continuous quenching furnace combined with heat treatment process,
to ensure longer service life of the ring die;
Improved safety pin
The steam pipeline system selects imported high-quality steam
components, and optimizes the pipeline layout and the configuration
of steam components to ensure that high-quality steam can be
provided for the quenching and tempering system.
Our service:
1. Free CAD design: if you can provide the material, your aim
capacity and your factory information, we can make a free CAD
design for you.
2. Manufacturing: High quality raw material purchasing, and
strictly controlling for the machine production, to ensure our
product quality can meet your demand
3. Installation: we can send our engineer to your place to instruct
the installation, to train your employees, to commission the line
until they can work normally.
4. Guarantee and after sales service: We provide the one year no
man-made guarantee and lifelong technical supports. Within the
guaranty, we shall replace the parts( except the vulnerable parts)
for free.
