Parameter of animal feed extruder
Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
Power(KW) | 22 | 37 | 55 | 110 | 160 |
Capacity(T/H) | 1 | 2-4 | 5-7 | 8-10 | 15-20 |
Inner dia(mm) | 250 | 320 | 350 | 420 | 508 |
Pellet size(mm) | 2-8 | 2-8 | 2-18 | 2-18 | 2-18 |
How to Work:

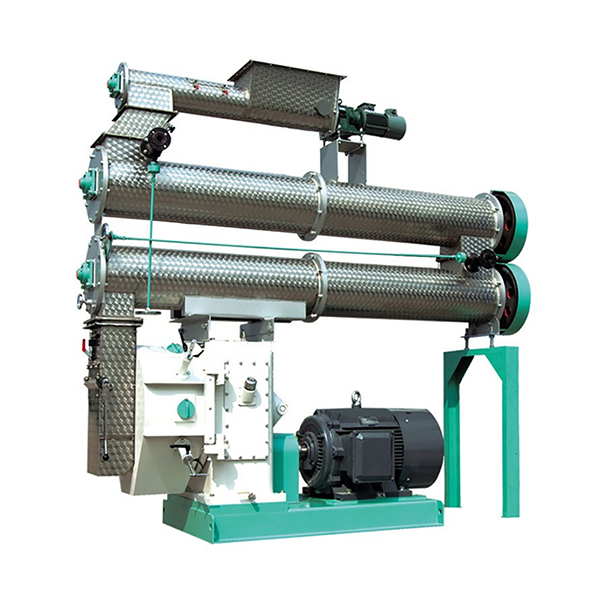

SZLH Feed Pellet Machine Equipped with conditioner, this pellet
machine will steam and soft the material first to kill the bacteria
and improve the qualitiy and capacity of final feed pellets.
It has the better raw material versatility, which can be suitable
for pelletizing many kinds of raw material, such as corn, broom
corn, wheat, beans, oil seed meal and other materials .
Product Feature:
1. Double motor drive system with the ideal transmission ratio,
large driving torque, smooth transmission.
2. The VVVF (electromagnetic speed) feeding, is equipped with
overload protection device, a magnetic plate iron removing device.
3. The high yield, low noise, convenient operation and maintenance.
4. The main parts of the bearings and the standard parts are
imported.
5. With 2-14mm, a variety of ring die size and thickness, the user
can choose according to different needs.
Advantages:
1. Wide applicable scope: It can process different materials such
as corn, maize, grass, grains, molasses, and some other raw
materials.
2. Highly efficient one step gear transmission drive ensures
maximum utilization ratio of energy.
3. Full stainless steel feeder; Variable-pitch anti-arch structure;
Imported frequency converter control.
4. Stainless steel conditioner extends the conditioning and cooking
time. Axial steam spraying port, improving feed cooking efficiency.
5. High precision driving main gear and pinion shaft adopt the
carbonizing quenching and hard tooth surface grinding technology,
resulting in smooth driving, low noise and long service life.
6. Capacity: We can customize the different capacities from 1 ton
per hour to 50 ton per hour or even more.
7. After-sale guarantee: One year warranty and all round after sale
service
8. Gearbox: with pinion shaft, main gear, main shaft, quill shaft,
gearbox body, manual lubrication system and overload protection
system.
9. Coupling assembly: with hub-taper lock bores, bushing-taper
locks, S-shaped grid cover etc.
10. One set of roller assembly---two roller system.
11. Ring die special design for low bulk density pelleting
12. Door made with one knife assembly.
13. Feed chute: External discharging can be carried out by pulling
out the external discharging lever arm of feed chute to prevent
feed from entering the pellet chamber for the convenience of trial
run and breakdown removal
