Farm use animal feed pellet mill machine for making chicken feed

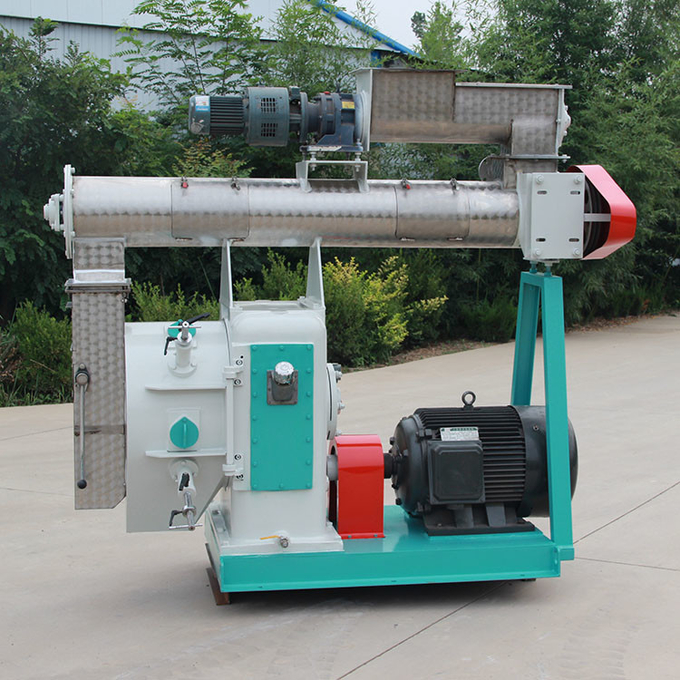

Product description of feed pellet mill machine
Feed pelletizer, also known as animal feed pelletizer or chicken
feed pelletizer, belongs to feed processing machinery. Corn,
soybean meal, rice straw, straw, rice husk, etc. are directly
pressed into pellet feed. Therefore, it is widely used in
aquaculture, animal feed processing plants and poultry farms.
Various animal feed pelletizers are classified according to their
appearance and production methods. Among them, flat die feed
pelletizers and ring die feed pelletizers are the most popular.
Ring die feed pelletizer flat film feed pelletizer is more
wear-resistant and less maintenance.
Parameter of feed pellet mill machine
| Model No. | Main motor power | Capacity (t/h) | Ring die inner diameter (mm) | Feeder power (kw) | Conditioner motor power (kw) | Size (mm) | Weight (kg) |
| SZLH250 | 22kw | 0.6-1 | 250 | 0.75 | 1.1 | 1750×650×1750 | 800 |
| SZLH320 | 37kw | 1-3 | 320 | 0.75 | 2.2 | 1900×1800×1650 | 2000 |
| SZLH350 | 55kw | 3-5 | 350 | 0.75 | 2.2 | 2100×2000×1850 | 2400 |
| SZLH420 | 110kw | 8-10 | 400 | 1.5 | 4 | 2200×2000×2150 | 2900 |
| SZLH508 | 132/160kw | 10-18 | 450 | 1.5 | 4 | 2300×2350×2150 | 3500 |
Features of feed pellet mill machine:
1. The part in contact with the material adopts stainless steel
structure, which occupies a small area and has low noise;
2. Wide adaptability, can produce chicken feed, duck feed, fish
feed, etc., with high economic benefits;
3. Using dry processing technology, the produced feed pellets have
high hardness, smooth surface and internal maturity, which is
beneficial to the digestion and absorption of nutrients by animals;
4. The forming process of the pellets kills all kinds of parasite
eggs and other pathogenic microorganisms, thereby reducing the
types of insects and diseases in the digestive system.
Advantages of feed pellet mill machine:
1. The feeder of the company's ring mode feed factory adopts
imported original frequency conversion controller, and the feeding
is uniform and accurate.
2. The conditioner of this feed pelletizer is all made of stainless
steel to ensure that it will not deteriorate in a steam environment
for a long time. It also designed an inspection door for easy
cleaning and maintenance. In the conditioning process, the feed is
in full contact with steam, and the feed has a high degree of
maturation, which is conducive to the production of high-quality
animal feed pellets.
3. The feed inlet of the animal feed factory is designed with a
deflector, which can control the flow direction of the material
(enter the pelletizing room or directly discharged from the
bottom). It is convenient to avoid the wrong proportion of
materials from entering the granulation system.
4. The transmission belt adopts high-strength SPB triangle belt,
the transmission is stable and reliable, and the noise is low.
