Highly Rated Poultry Chicken Livestock Feed Pellet Line Animal Feed Machine

Ask Lasest Price
Brand Name :	Shenghong
Model Number :	SZLH250
Certification :	BV, SGS, ISO9001, CE
Price :	USD 5999-29999
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	20 sets per month
Delivery Time :	within 15 days

Add to Cart

Product Details
Company Profile

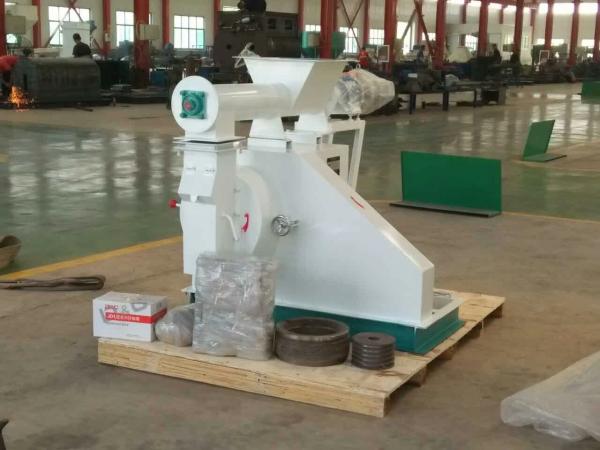

Highly Rated Poultry Chicken Livestock Feed Pellet Line Animal Feed Machine

Chicken Animal Feed Pellet Making Machine Hay Feed Pellet Machine Price

Product description

Good price animal food pellet making machine is widely used in the granulation of corn, wheat, beans, etc. The output pellets are used as animal and poultry feed stuff in livestock farm, poultry farm, feed processing industry, aquaculture, etc.

Now, due to the outstanding features of high throughput, low consumption and mature technology, Good price animal food pellet making machine has become more and more popular and possess broad market share at home and broard.

Pellet size for different animals is different:

1.For pig, the pellet diameter is usually 3.5-6.5mm.

2.For cattle, the pellet diameter is usually 4.5-8mm.

3.For chicken, pellet diameter is usually 3.2mm.

4.For fish, pellet diameter is usually2.0, 2.5, 3.0mm.

5.For shrimps, pellet diameter is usually 1.0-3.5mm.

Parameter

Raw materials	corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc.
Diameter of feed pellet	2/2.5/3/3.5/4/6/8/10mm
Application	feed pellet machine/plant widely be used for home,poultry and livestock farm.
Capacity	1-3T/H,also can customized according to your demand
Process Step	crushing-mixing-pelletizing--cooler&screener--packing
Warranty	1Year(except spare parts)
Certication	CE
Motor	Siemens Brand Motor
Bearing	Brand
Service after sales	Engineer can provide technical support

Model	Main power(kw)	Out-put(t/h)	Power of Conditioner(kw)	Power of screw feeder(kw)	In-side of rind die(mm)
SZLH250	22	0.5-1.5	2.2	0.55	250
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Feature:

1)Stainless steel ring die resists corrosion, has long service life and guarantee high quality pellets.

2) High quality gearbox of this pellet feed machine can adjust the speed timely, avoid blockage.

3) Driven by high precision gear which ensures high productivity and low energy-consumption.

4) Adopt lubricating system, which automatically lubricates each main bearing and oil seal, thus improve the machine reliability and service life.

5) Permanent magnet device of pellet feed machine can remove impurities in the pelletizing process.

6) Convenient maintenance and operation for the pellet feed machine.

Working principle:

Good price animal food pellet making machine is very easy to operate and maintain, you can directly use it upon you get it, as long as connecting with the electric power.

Because all of our machines had run once as a trial before the delivery, to make sure everything goes well, so you can be assured about the quality of our machines.

Firstly, the raw material is delivered into the pellet feed machine through a conveyor and then conveyed into a rotating ring die by a feeder.

Secondly, the pulverized material will be pressed into the ring die through two rotating press rollers. The resulting pressure compresses the material and extrudes it through the holes in the die. Then, the pellet will be out directly.

Finally, you can cool the final pellets down in the sun, or with a cooling machine and drying machine, then you can pack them to store or sell.
