Animal Small Chicken Feed Production Machine Poultry Feed
Production Line
Product description:
Feed pellet production line is a complete set of machines that are
specifically used to make feed pellets. The key machines like
hammer mill, feed mixer and feed pellet machine are patented
product through 10 years research and development combined with
advanced technology by Shandong Double Crane Machinery Manufacture
Co.,Ltd. The capacity can range from 1 tons per hour to 30 tons per

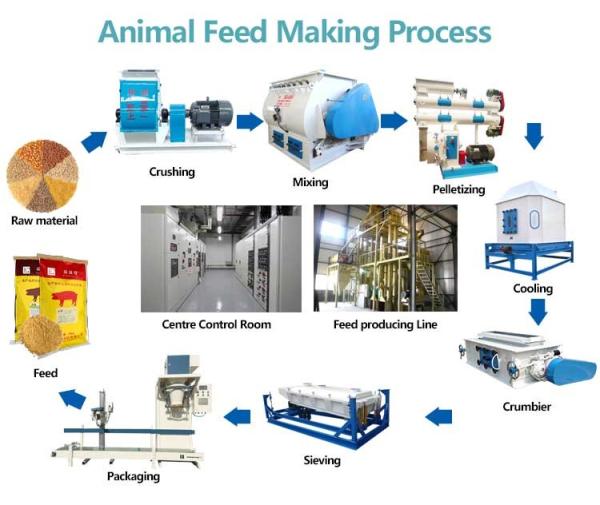

hour. The feed pellet plant generally including the following
process: raw materials crushing process, mixing process, pellet
making process, pellet cooling process, sifting process and so
on.Each process includes different kinds of machines. All these
machines form a whole set which guarantee the automatic production
of feed pellets in large quantity and high quality for livestock,
poultry and such animals as pig, cow, sheep etc.
Parameter:
Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
Power(KW) | 22 | 37 | 55 | 110 | 160 |
Capacity(T/H) | 1 | 2-4 | 5-7 | 8-10 | 15-20 |
Inner dia(mm) | 250 | 320 | 350 | 420 | 508 |
Pellet size(mm) | 2-8 | 2-8 | 2-18 | 2-18 | 2-18 |
Features:
1. It adopts direct gear transmission, with high transmission
efficiency, and the output is 15% higher than that of the belt
type;
2. The material of the gear box and the high precision of the
transmission hole are guaranteed by the casting technology and CNC
machining equipment of the professional foundry.
3. The main drive system bearings and oil seals are imported, and a
lubrication oil return system is set up to ensure reliable bearing
lubrication;
4. The connection between the ring die and the transmission wheel
adopts a quick-release casting hoop, which is convenient and quick
to disassemble the ring die (the ring die lifter is provided with
the machine);
5. The gears and pinion shafts are processed by carburizing and
quenching, hard tooth surface grinding, stable transmission and
long service life;
6. The motor and gear shaft adopt serpentine spring coupling, which
has reliable transmission and high efficiency;
7. The door cover and chute are all made of stainless steel, with
strong anti-corrosion ability and long service life;
